제품 상세 정보:
|
| 색상: | 빨간색, 검은색, 노란색, 녹색 | 소재: | 실리콘 |
|---|---|---|---|
| 종류: | 수리 테이프, 전기 테이프, 전기 보호 | 제품 이름: | 셀프 아말가메이트 실리콘 고무 테이프 |
| 적용: | 터널 및 전력 전력 | 기능: | 밀봉 및 절연 |
| 강조하다: | Silicone tape,silicone tape for bus bar,self adhesive silicone tape for bus bar |
||
Product name:

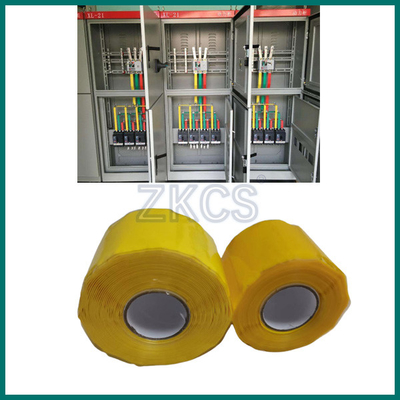

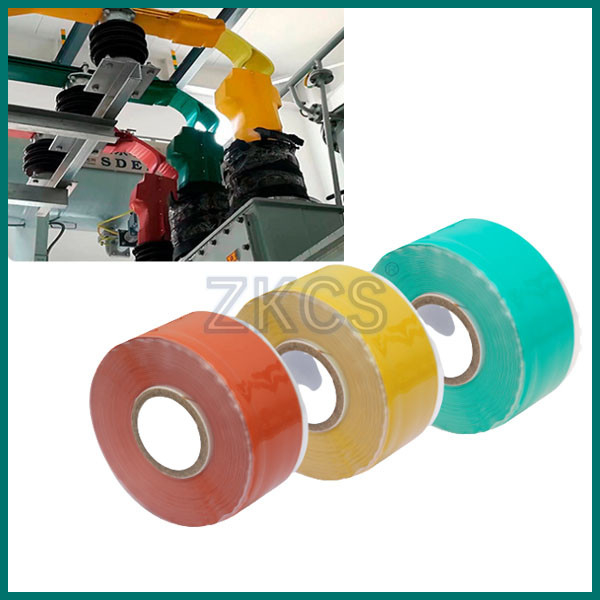

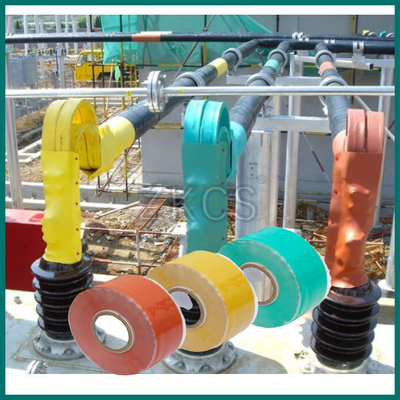

Heat Resistant And Low MOQ Self Adhesive Silicone Tape For Bus Bar
Applications:
For cable and wire connections
For Bus bar insulation
bus bar bolted connections
Moisture seal for automobile protective,tunnel and aerospace
| Product name |
Length (±0.05)M |
Width (±1.5)mm |
Thickness (±0.05)mm |
Parameters |
| Heat Resistant Silicone Rubber Electrical Tape | 5 | 50 | 0.5 | See below chart |
| Heat Resistant Silicone Rubber Electrical Tape | 5 | 50 | 0.8 | See below chart |
Good electrical waterproof tunnel leakage repair tape silicone self fusing tap Technical Parameters:
| No. | Items | Test standard | Unit | Results |
| 1 | Hardness | GB/T 531.1-2008 | Shores A | 50±10 |
| 2 | Tensile strength | GB/T 528-2009 | Mpa | ≥4.5 |
| 3 | Elongation at break | GB/T 528-2009 | % | ≥350 |
| 4 | Dielectric coefficient | GB/T1408.1-2006 | KV/mm | ≥22 |
| 5 | Volume resistivity | GB/T1410-2006 | Ω.cm | ≥1.3*1015 |
| 6 | Self-adhesive | ASTM D2148 | N/cm | >3.5 |
| 7 | Water absorption | % | <0.9 | |
| 8 | density | GB/T 20631.2 | g/cm3 | <1.5 |
| 9 | Flame retardant | grade | UL-94 | V0 |
| 10 | Heat resistant temperature | 180 | ||
| 11 | Withstand voltage | 15KV | ||
| 12 | Color | Red, yellow, green etc |
Features:
1: Excellent flame retardant properties
2: Excellent heat resistance characteristics
5: Flexible over wide temperature range
6: Good quality, can be used in 180℃ for long time use.
7: Excellent weather resistance properties
Application:
| No | Items |
| 1 | Can be used for high voltage cable end with very good resistance function to electricity arc and tracking, suitable for winding on all kinds of power cable insulation materials. |
| 2 | Can be used in insulation protection of electrical cabinets |
| 3 | Can be applied to thermal insulation class H |
| 4 | Can be applied to high temperature resistant cable of flame retardant requirement |
