제품 상세 정보:
|
| 재료: | 실리콘 | 색상: | 검은 색 또는 회색 |
|---|---|---|---|
| 길이: | 맞춤형 | 이름: | 차가운 수축 튜브 |
| 어플리케이션: | 단열 보호 | 제품명: | 전기 절연용 냉간 수축 슬리브 |
| 포장: | 판지 상자 | 무료 샘플: | 예 |
| 강조하다: | electrical insulation,cold shrink sleeve,cable termination |
||
Product name:
Cold Shrink Sleeve for Electrical Insulation | High-Quality & Durable | UV Resistant
Description:
Our Cold Shrink Sleeves are designed for high-performance electrical insulation, offering superior protection in outdoor and industrial environments. these sleeves provide excellent insulation, waterproofing, and UV resistance. Perfect for cable joints, terminations, and connectors, our cold shrink sleeves are quick to install and provide a long-lasting, secure seal.
Features :
High Insulation Properties: Ensures safe, reliable performance for electrical systems.
UV Resistance: Protects cables and connectors from sun damage, ensuring long-term durability.
Quick Installation: No heat or special tools required for installation—just slide and shrink.
Wide Temperature Range: Works efficiently in both extreme cold and heat.
Versatile Application: Ideal for outdoor and industrial cables, especially in harsh weather conditions.
Applications

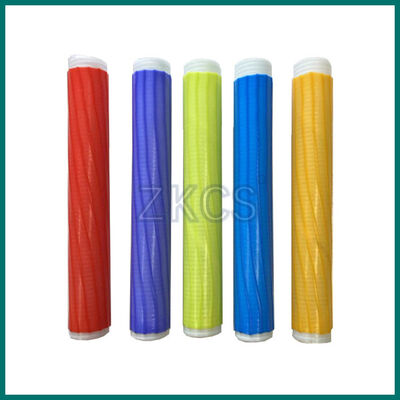

Picture for your reference.
Introduction:
Equivalent 3M quality Insulation Cold Shrink Splice Sleeve are a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre stretched condition. The core is removed after the tube has been positioned for installation over an in-line connection terminal link allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber which contains no chlorides or sulphurs.
| Material technical parameters: | |||||
| No | Items | Test method | Unit | Test standard | Remarks |
| 1 | Hardness (Shore A) | GB/T 531.1-2009 | Shore A | 43±5 | |
| 2 | Tensile strength | GB/T 528-2009 | Mpa | 8±3 | |
| 3 | Break elongation | GB/T 528-2009 | % | 800±200 | |
| 4 | Tear strength | GB/T 529-2008 | kN/mm | 38±5 | |
| 5 | Volume resistivity | GB/T 2439-2001 | Ω•cm | ≥1013 | |
| 6 | dielectric strength | GB/T 1695-2005 | MV/m | ≥18 | |
| 7 | dielectric Constant(50Hz) | GB/T 1693-2007 | / | ≤8 | |
