제품 상세 정보:
|
| 재료: | 실리콘 | 색상: | 검은 색 또는 회색 |
|---|---|---|---|
| 길이: | 맞춤형 | 이름: | 차가운 수축 튜브 |
| 애플리케이션: | 단열 보호 | 제품명: | 단말기 트잉크 냉 수축 단열은 3m으로서 비슷하여서 장비를 갖춥니다 |
| 포장: | 판지 상자 | 무료 샘플: | 예 |
| 강조하다: | EPDM cold shrink tube,power cable accessories,cold shrink insulation sleeve |
||
Product name:

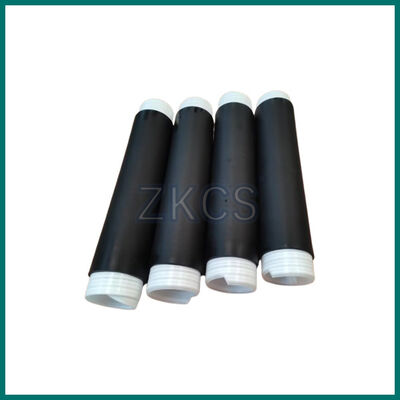

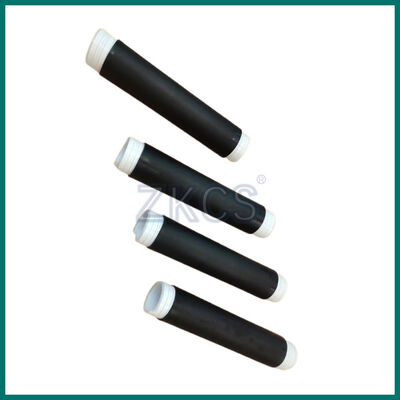

EPDM cold shrink tube for cable sealing and insulation
Description:
EPDM cold shrink tubes offer a safe, flame-free solution with consistent compression and long-lasting insulation — even in demanding conditions.
Once the core is pulled out, the tube contracts naturally and evenly around the cable, creating a secure seal without heat, flame, or special installation tools.
Features:
Applications

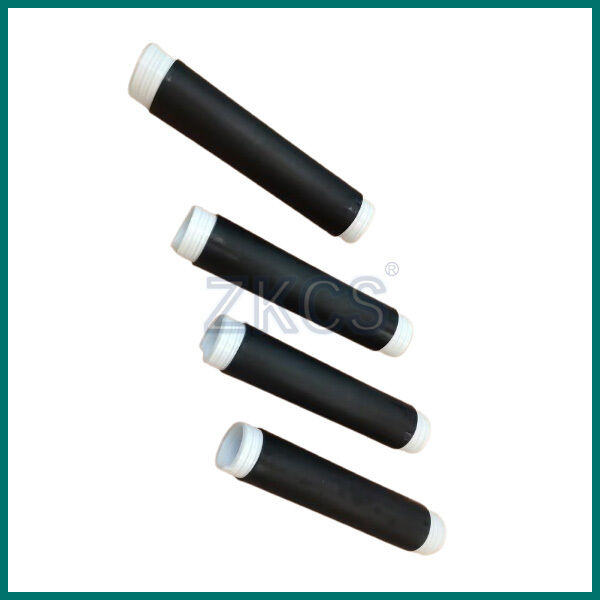

Picture for your reference.
Introduction:
Cold Shrink Tubes are a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre stretched condition. The core is removed after the tube has been positioned for installation over an in-line connection terminal link allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber which contains no chlorides or sulphurs.
| Material technical parameters: | |||||
| No | Items | Test method | Unit | Test standard | Remarks |
| 1 | Hardness (Shore A) | GB/T 531.1-2009 | Shore A | 43±5 | |
| 2 | Tensile strength | GB/T 528-2009 | Mpa | 8±3 | |
| 3 | Break elongation | GB/T 528-2009 | % | 800±200 | |
| 4 | Tear strength | GB/T 529-2008 | kN/mm | 38±5 | |
| 5 | Volume resistivity | GB/T 2439-2001 | Ω•cm | ≥1013 | |
| 6 | dielectric strength | GB/T 1695-2005 | MV/m | ≥18 | |
| 7 | dielectric Constant(50Hz) | GB/T 1693-2007 | / | ≤8 | |
