제품 상세 정보:
|
| 재료: | 실리콘 | 색상: | 검은 색 또는 회색 |
|---|---|---|---|
| 길이: | 맞춤형 | 이름: | 차가운 수축 튜브 |
| 애플리케이션: | 단열 보호 | 제품명: | 절연 튜브 케이블 보호용 실리콘 냉수 수축 커넥터 |
| 포장: | 판지 상자 | 무료 샘플: | 예 |
| 강조하다: | SiliconeColdShrink,WaterproofSealing,Stable Mechanical Protection |
||
Product name:

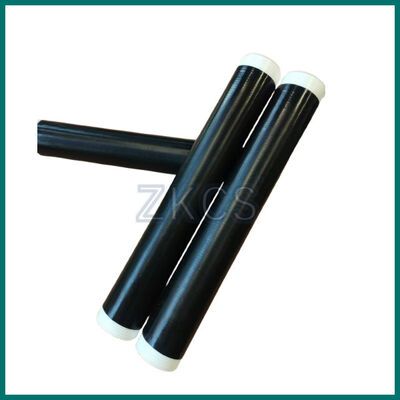

High Reliability Silicone Cold Shrink Tube for cable insulation
Description:
The All-Weather Silicone Cold Shrink Tube is a pre-expanded, heat-free insulation solution designed to deliver dependable sealing and protection for cables and connectors in challenging environments.
Features:
Heat-free installation for enhanced safety
Uniform shrinking for consistent sealing performance
Excellent electrical insulation properties
Applications
Primary electrical insulation for all solid dielectric (rubber and plastic) insulated wire and cable splices rated to 1000volts
Introduction:
EPDM Cold Shrink Tubes are a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre stretched condition. The core is removed after the tube has been positioned for installation over an in-line connection terminal link allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber which contains no chlorides or sulphurs.
| Material technical parameters: | |||||
| No | Items | Test method | Unit | Test standard | Remarks |
| 1 | Hardness (Shore A) | GB/T 531.1-2009 | Shore A | 43±5 | |
| 2 | Tensile strength | GB/T 528-2009 | Mpa | 8±3 | |
| 3 | Break elongation | GB/T 528-2009 | % | 800±200 | |
| 4 | Tear strength | GB/T 529-2008 | kN/mm | 38±5 | |
| 5 | Volume resistivity | GB/T 2439-2001 | Ω•cm | ≥1013 | |
| 6 | dielectric strength | GB/T 1695-2005 | MV/m | ≥18 | |
| 7 | dielectric Constant(50Hz) | GB/T 1693-2007 | / | ≤8 | |
