제품 상세 정보:
|
| 색상: | 검은색 | 재료: | EPDM |
|---|---|---|---|
| 지름: | 20.9-84.3mm 또는 사용자 정의 | 길이: | 60-100mm 또는 맞춤형 |
| OEM: | EPDM 슬리브 | 인장강도: | 8MPA |
| 파단 연신율: | 800% | ||
| 강조하다: | EPDM Material,Superior Sealing,UV & Weather Resistant |
||
Specification for EPDM End Cap
| No | Model | Max. diameter (mm) | Min. diameter (mm) | Thickness After Shrink(±0.5mm) | Length after shrink(mm) |
| FM-1 | 25×60 | 20.9 | 11.6 | 3.0 | 60+10mm |
| FM-2 | 35×75 | 30.1 | 15.9 | 3.0 | 75±10mm |
| FM-3 | 55×82 | 49.2 | 26 | 3.0 | 82+10mm |
| FM-4 | 90×100 | 84.3 | 43.5 | 3.0 | 100±10mm |
| Material technical parameters: | |||||
| No | Items | Test method | Unit | Test standard | Remarks |
| 1 | Hardness (Shore A) | GB/T 531.1-2009 | Shore A | 43±5 | |
| 2 | Tensile strength | GB/T 528-2009 | Mpa | 8±3 | |
| 3 | Break elongation | GB/T 528-2009 | % | 800±200 | |
| 4 | Tear strength | GB/T 529-2008 | kN/mm | 38±5 | |
| 5 | Volume resistivity | GB/T 2439-2001 | Ω•cm | ≥1013 | |
| 6 | dielectric strength | GB/T 1695-2005 | MV/m | ≥18 | |
| 7 | dielectric Constant(50Hz) | GB/T 1693-2007 | / | ≤8 | |

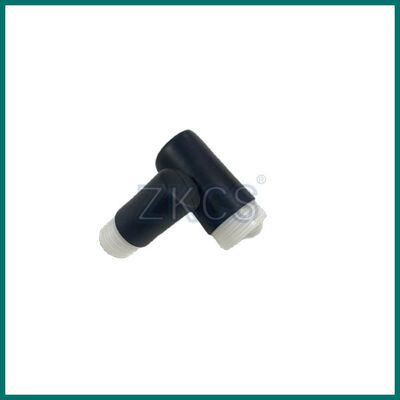

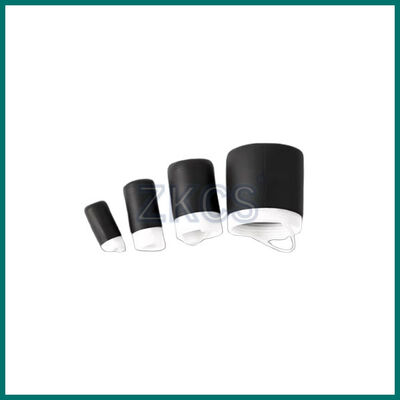

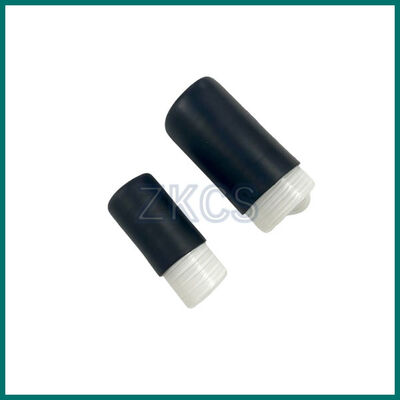

Product picture for your reference.
1. Who are we?
We are professional in cold shrink industry. Our products have been exported to America, Australia, Egypt, Taiwan, India, Indonesia, Egypt, Spain, Italy and Germany etc, Europe countries. Currently, we already cooperated many famous companies in electrical and telecommunication industry.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Cold shrink series sealing products, including customized processing machines and products kits, for examples: processing winding and expanding machines, spiraling strip/tube supporting material, EPDM cold shrink tube and silicone cable accessories kit in telecommunication and electrical power industry.
4. Why should you buy from us not from other suppliers?
Years focus on telecom and power infrastructure material, with experienced engineer and workers, with turnkey solution for cold shrink line to solve all your problem in this industry with competitive price.
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW standard international terms and welcome commercial terms discussion;
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow;
Language: English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Shipment: express, sea and air shipping
